Aperçu ProduitsAluminum Waterproof Metal Junction Box

160x100x65mm Metal Box Enclosures for Electronic Factory

Je suis en ligne une discussion en ligne

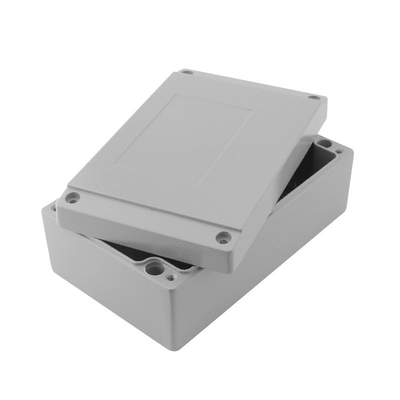

160x100x65mm Metal Box Enclosures for Electronic Factory

Chine 160x100x65mm Metal Box Enclosures for Electronic Factory fournisseur
160x100x65mm Metal Box Enclosures for Electronic Factory fournisseur 160x100x65mm Metal Box Enclosures for Electronic Factory fournisseur 160x100x65mm Metal Box Enclosures for Electronic Factory fournisseur 160x100x65mm Metal Box Enclosures for Electronic Factory fournisseur

Image Grand :  160x100x65mm Metal Box Enclosures for Electronic Factory

Détails sur le produit:

Place of Origin: China
Nom de marque: AnBox
Certification: CE
Model Number: AB-FA-26

Conditions de paiement et expédition:

Minimum Order Quantity: 1pc
Prix: $7~$20
Packaging Details: pp bag/box
Delivery Time: 7 days
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 1000pcs/day
Contact
Description de produit détaillée
External Size: 160x100x65 Protection Level: IP66
Type: Junction box Material: Aluminum Alloy
Box Color: Light Grey OEM: Available
Lead time: 7 days shipping: DHL/UPS/TNT/Fedex/China post/sea/etc.
Payment Terms: Western Union, T/T

This serial enclosure is widely used for liquid fluid, pressure, moisture etc, sensor industry, with watertight and explosion proof capability, material is aluminum alloy





Specifications

1, Model: AB-FA-26
2,Material: Aluminum Alloy
3, Color: Grey
4, Weatherproofing via user-fitted O-ring (supplied).
5, Dimensions (WxDxH): 160*100*65mm
6, Assembly screws included.



Drawing Reference

160x100x65mm Metal Box Enclosures for Electronic Factory


 Other sizes



Model NO. Size(mm) Model NO. Size(mm)
AB-FA-1 64*58*35 AB-FA-5-1 222*145*55
AB-FA-18 80*75*60 AB-FA-5 222*145*55
AB-FA-9 90*36*31 AB-FA-6 222*145*75
AB-FA-7-1 98*64*35 AB-FA-6-1 222*145*80
AB-FA-4 100*68*50 AB-FA-10 228*150*75
AB-FA-43 100*100*60 AB-FA-24-16 240*160*80
AB-FA-7 111*64*37 AB-FA-64 240*160*100
AB-FA-24 115*65*55 AB-FA-21 250*80*64
AB-FA-34 115*90*58 AB-FA-22 250*80*80
AB-FA-34-1 115*90*58 AB-FA-36 250*120*82
AB-FA-VT2-1 120*80*55 AB-FA-15 250*190*90
AB-FA-VT2 120*80*55 AB-FA-15 window 250*190*90
AB-FA-VT120 120*80*65 AB-FA-39 260*160*90
AB-FA-60 120*120*82 AB-FA-66 260*185*96
AB-FA-2-3 125*80*58 AB-FA-67 260*185*128
AB-FA-2-2 135*85*56 AB-FA-67-1 260*185*128
AB-FA-44 140*140*75 AB-FA-65 265*185*75
AB-FA-58 145*100*45 AB-FA-75 280*230*110
AB-FA-7-2 150*64*37 AB-FA-75-1 280*230*110
AB-FA-29 150*100*80 AB-FA-68 300*210*100
AB-FA-25 160*100*60 AB-FA-68-1 300*210*100 hinge
AB-FA-26 160*100*65 AB-FA-69 300*210*130
AB-FA-61 160*160*70 AB-FA-38 320*120*90
AB-FA-62 160*160*90 AB-FA-38-1 320*120*90 hinge
AB-FA-62-1 160*160*90 AB-FA-70 340*235*95
AB-FA-25-1 165*95*39 AB-FA-70-1 340*235*95 hinge
AB-FA-20 175*80*56 AB-FA-71 340*235*120
AB-FA-20-1 175*80*80 AB-FA-71-1 340*235*120 hinge
AB-FA-8 180*140*55 AB-FA-72 340*235*135
AB-FA-13 185*135*85 AB-FA-72-1 340*235*135 hinge
AB-FA-3 188*120*78 AB-FA-73 340*235*160
AB-FA-12-S 200*130*60 AB-FA-73-1 340*235*160 hinge
AB-FA-12-1 200*130*80 AB-FA-40 360*160*95
AB-FA-14 220*155*95 AB-FA-41 360*160*135




160x100x65mm Metal Box Enclosures for Electronic Factory
